SM Components

| High power levels
| Tap coupler
| Wavelength combiner (WDM)
| Broadband coupler
| Broadband filter
| PM and non-PM

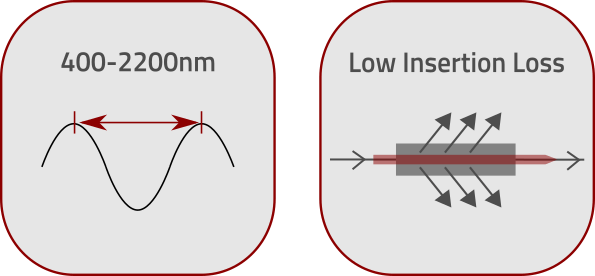

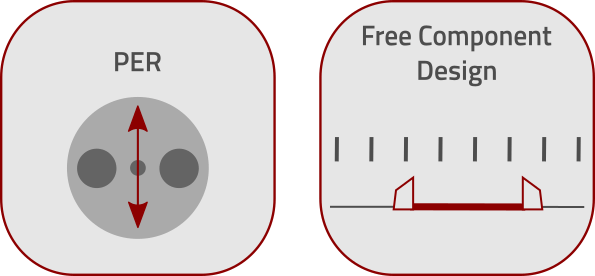

| Highlights

| Tap Coupler - Fused fiber coupler for monitoring and splitting / combining.

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Coupling ratio Arbitrary
Excess loss < 0.3dB
Pigtail length > 0.8m
Power handling < 10W* (100W on request)**
Port configuration 2x1, 2x2
Package size 70 x 4mm L x ∅ (High power: 70 x 16 x 12mm L x W x H)
*Heatsinking is required for package temperature above 35°C
**Heatsinking is required, recommended package temperature between 18°C and 35°C
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

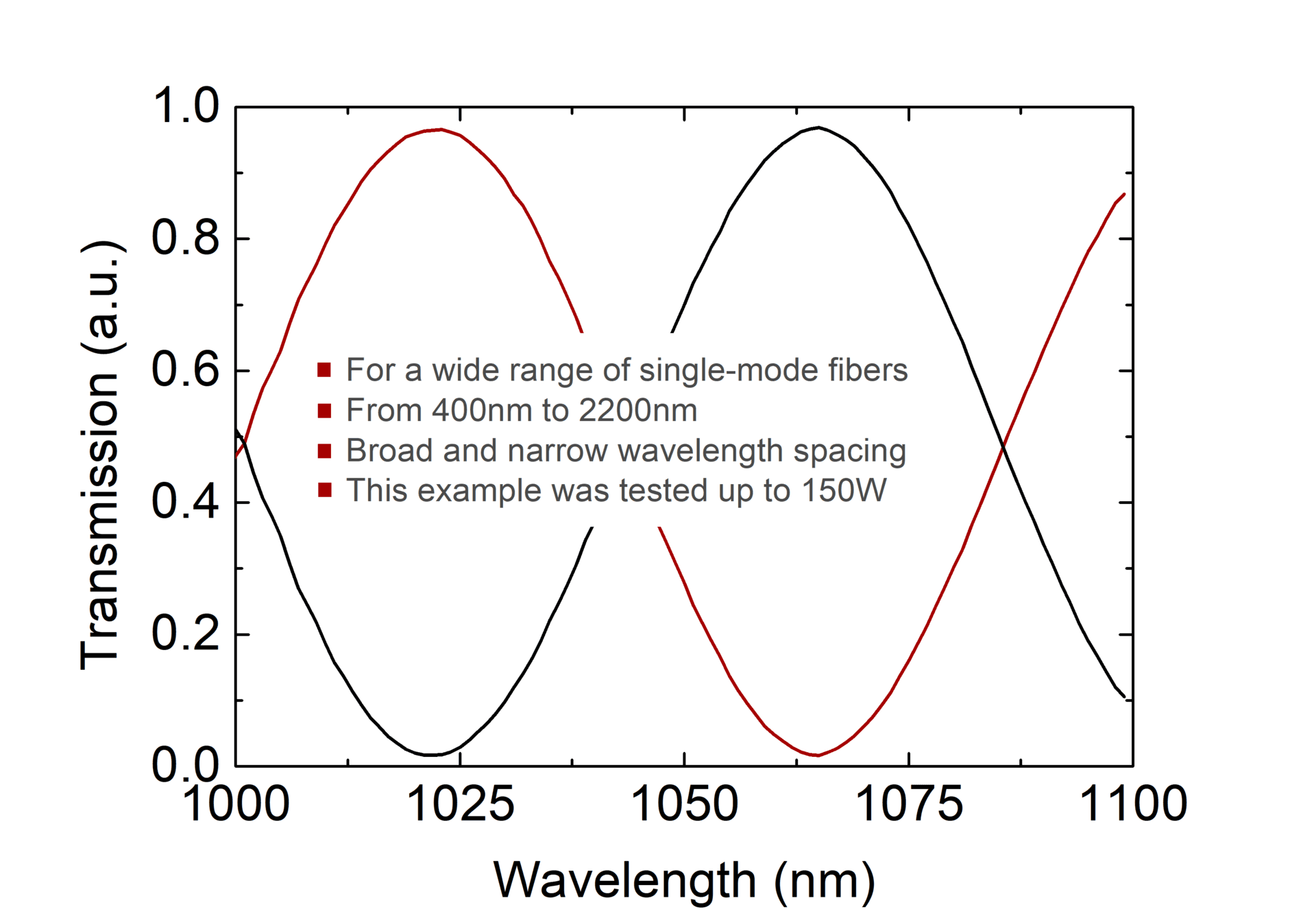

| Wavelength Combiner (WDM) - Fused coupler for wavelength combining / splitting.

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Insertion loss < 0.3dB
Pigtail length > 0.8m
Power handling < 10W* (100W on request)**
Port configuration 2x1, 2x2
Package size 70 x 4mm L x ∅
(High power: 70 x 16 x 12mm L x W x H)
*Heatsinking is required for package temperature above 35°C
**Heatsinking is required, recommended package temperature between 18°C and 35°C
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

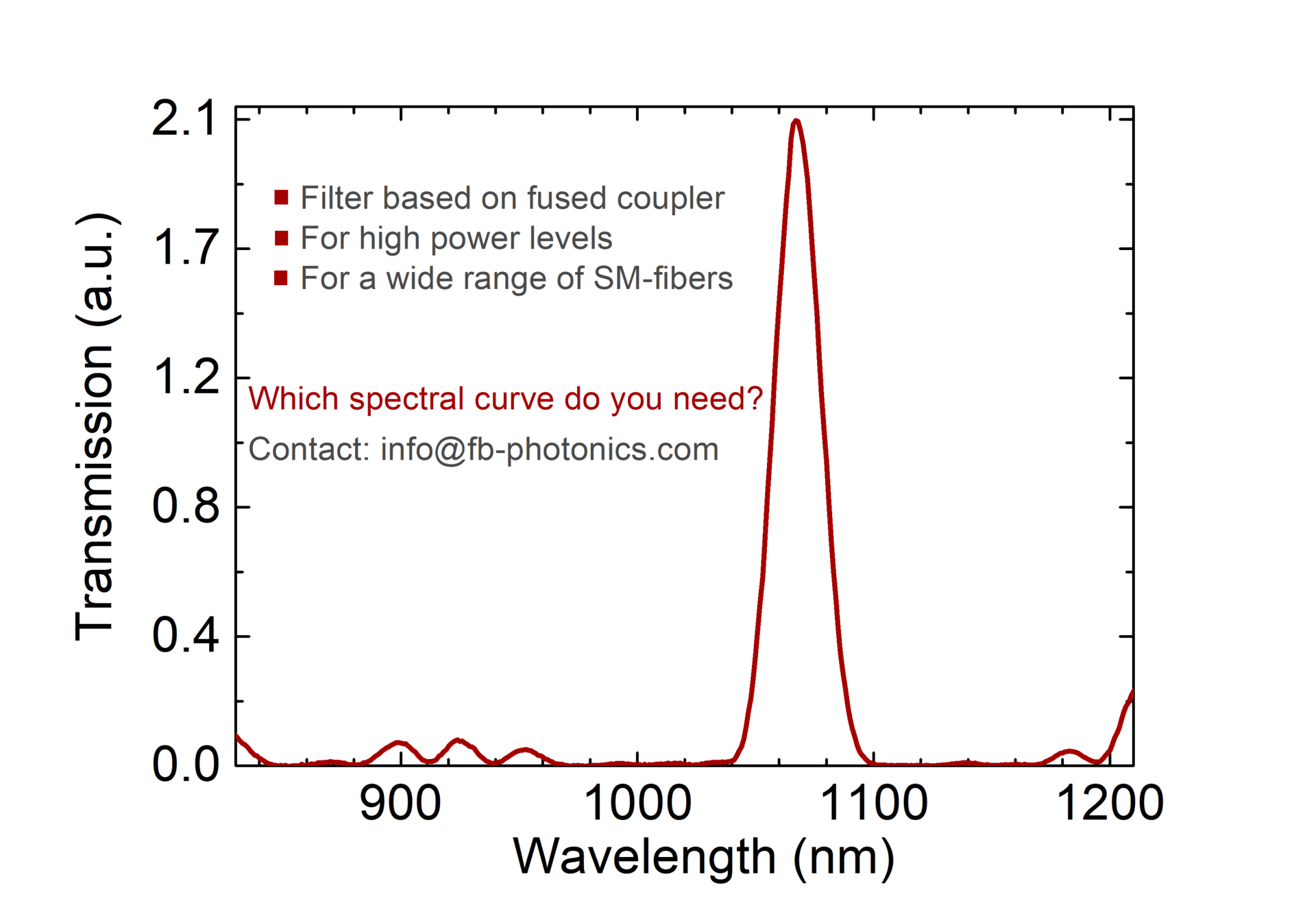

| Broadband Filter - Based on fused fiber coupler with customized filter curves.

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Insertion loss < 0.7dB
Pigtail length > 0.8m
Power handling < 10W* (100W on request)**
Port configuration 2x1, 2x2
Package size 70 x 4mm L x ∅
(High power: 70 x 16 x 12mm L x W x H)
*Heatsinking is required for package temperature above 35°C
**Heatsinking is required, recommended package temperature between 18°C and 35°C
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

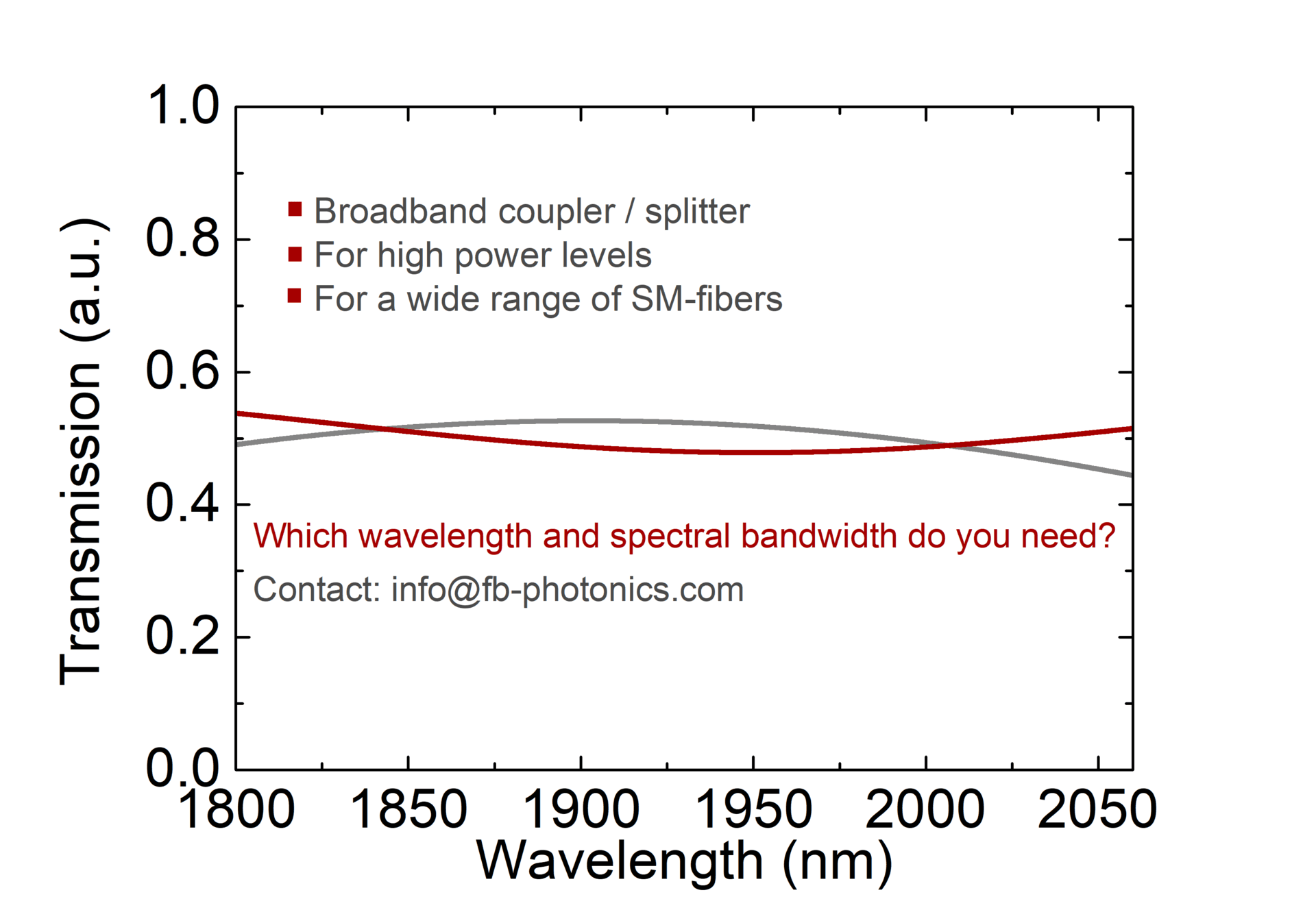

| Broadband Coupler - Based on fused fiber coupler with very broad and constant coupling ratio

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Excess loss < 0.3dB
Pigtail length > 0.8m
Power handling < 10W* (100W on request)**
Port configuration 2x1, 2x2
Package size 70 x 4mm L x ∅
(High power: 70 x 16 x 12mm L x W x H)
*Heatsinking is required for package temperature above 35°C
**Heatsinking is required, recommended package temperature between 18°C and 35°C
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.
