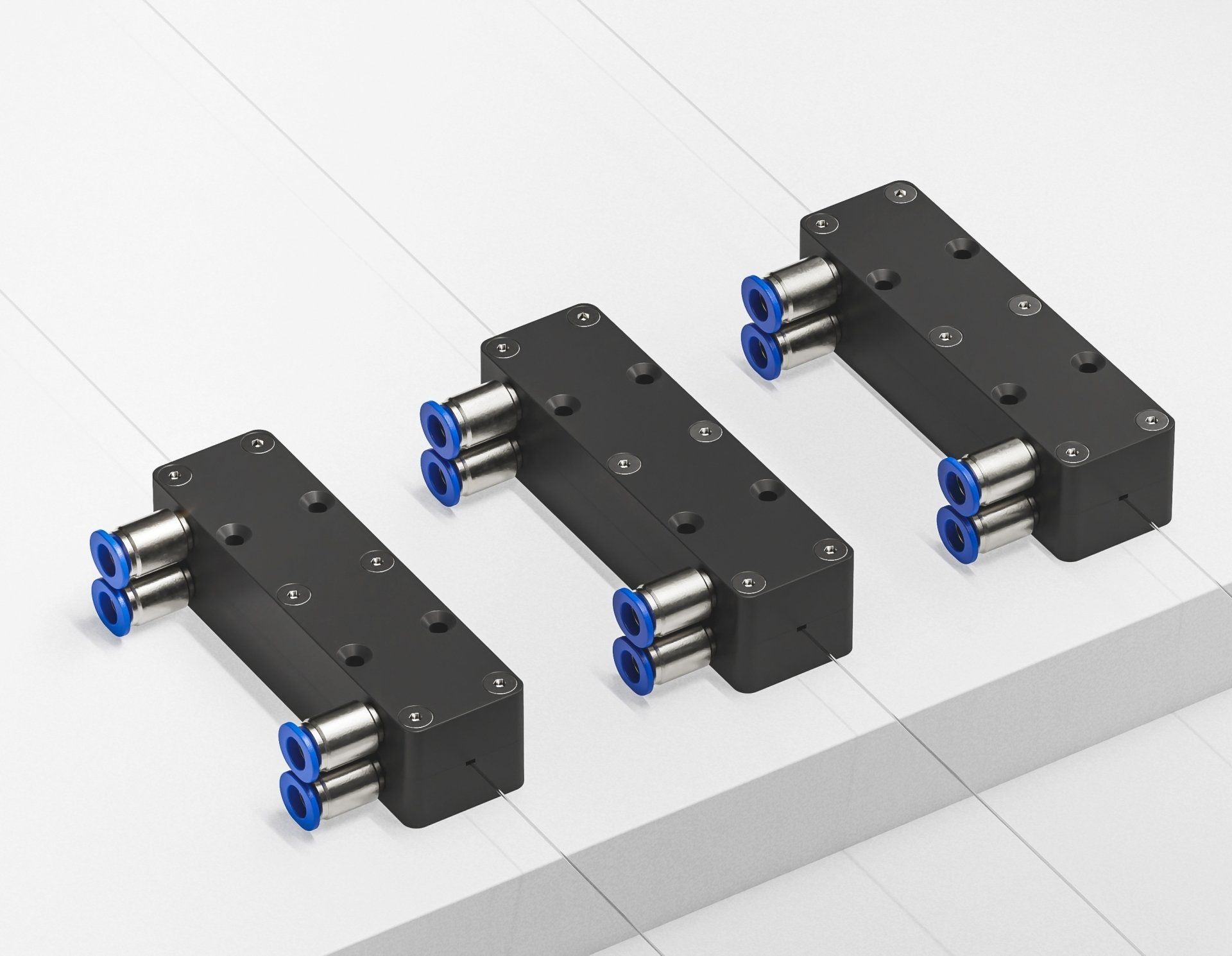

Cladding Light Strippers

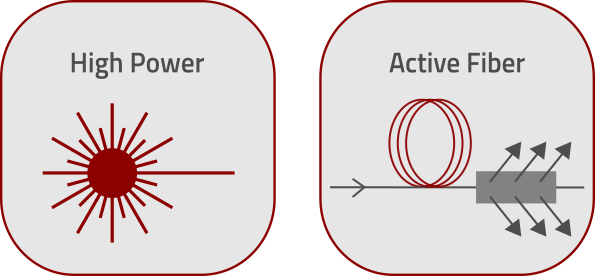

| High power laser and amplifier

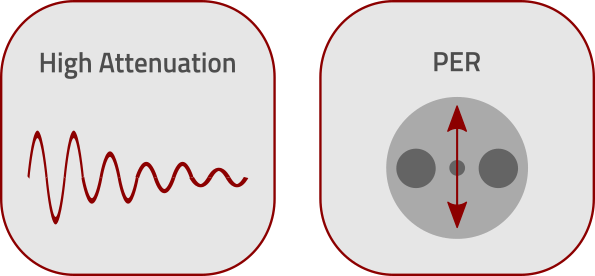

| High attenuation
| Active or passive fiber
| PM or non-PM fiber

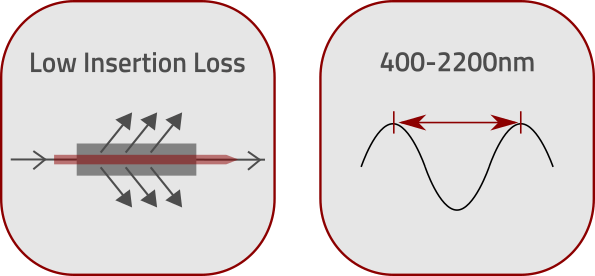

| Very low signal insertion loss
| Maintaining of beam quality and polarization
| Spliceless fiber modules with cladding power stripper

| Highlights

| Technical Data

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Signal insertion loss < 0.2dB (typ. < 0.1dB)
Max extracted cladding power up to 500 W *
Typ. optical attenuation ≥ 20 dB **
Package Size (Medium Power ≤100W) 90 x 25 x 12 mm L x W x H
Package Size (High Power ≤500W) 90 x 25 x 22 mm L x W x H
*requires heat sink with water cooling, Heatsinking is required, recommended package temperature between 18°C and 40°C
**Fiber under fully filled conditions
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

| Applications

| For kW-class fiber amplifier and laser
| Cladding-mode-stripper for beam delivery
| Cladding Power Stripper for fiber arrays
| Industrial, Biomedical, Telecom, Metrology
| Life Science, Imaging, Quantum optics
