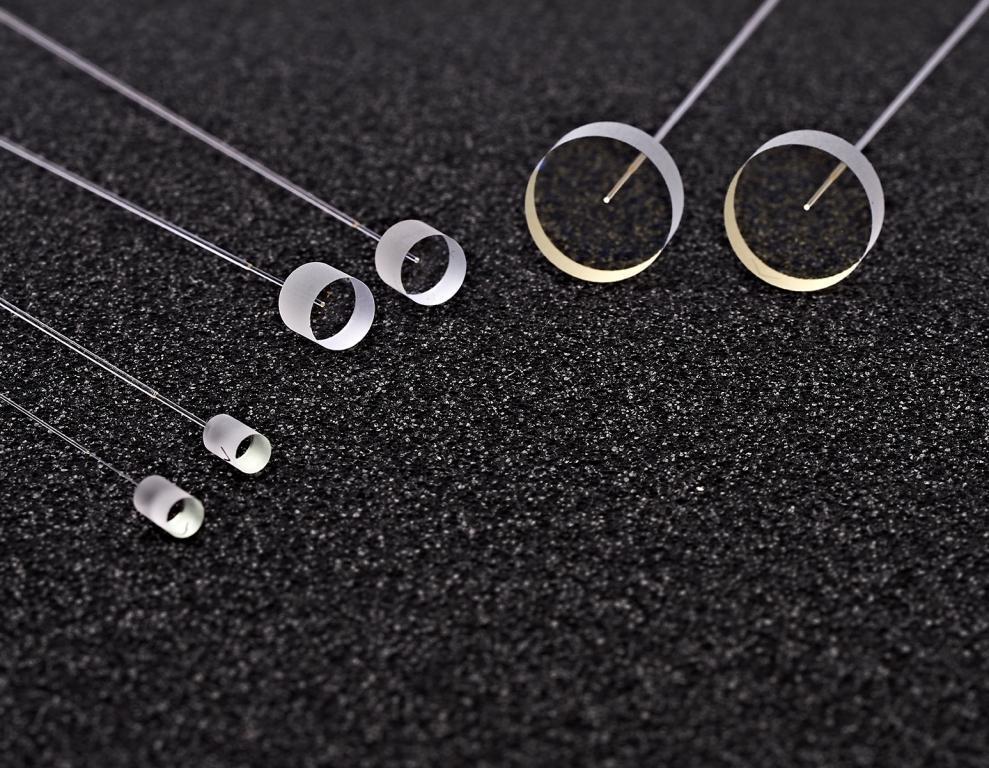

Fiber End Caps

| End Caps for kW class beam delivery
| End Caps for LMA Fiber Amplifier

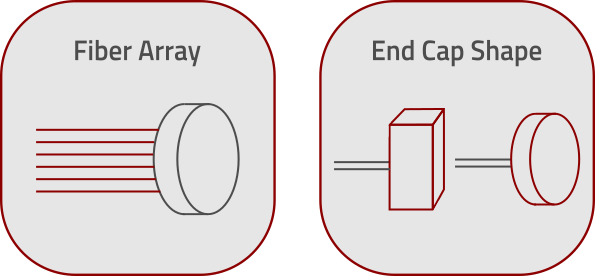

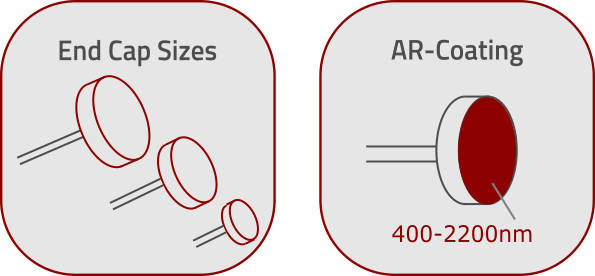

| Various end cap diameters and shapes
| Low absorption glass and coating
| Fiber diameter from 125 µm to 2 mm
| PM or non-PM / Active or passive fiber

| Highlights

| Products

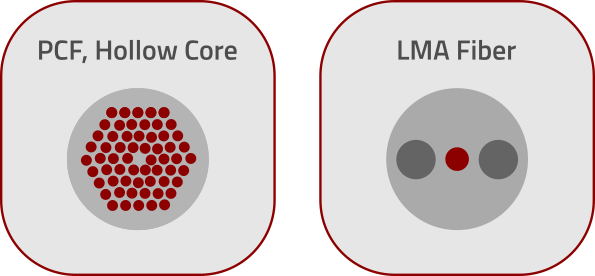

Fiber Category Type Example End Cap Diameter AR Coating
Single-Mode Active / Passive PM-DC-10/125 3 / 6 / 12.7mm 1020-1080nm, 1480-1570nm, 1900-2100nm
Multi-Mode Active / Passive MM-200/220 3 / 6 / 12.7mm 1020-1080nm, 1480-1570nm, 1900-2100nm
Large-Mode-Area Active / Passive PM-DC-20/400 3 / 6 / 12.7mm 1020-1080nm, 1480-1570nm, 1900-2100nm
Microstructured Active / Passive HC-1060 3 / 6 / 12.7mm 1020-1080nm, 1480-1570nm, 1900-2100nm
| Ask for customized end caps as well as AR-coatings

| Technical Data

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
AR coating On request
Cladding light stripper On request
Insertion loss < 0.2dB (typ. ≤ 0.1dB)
End cap diameter 2 - 50 mm (Ask for customized size and shape)
End cap length 4 - 20mm
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

| Applications

| Fiber high power lasers and amplifiers
| Beam delivery for SM, LMA and MM fiber
| Highly stable mounting of fiber ends
| Industrial, Biomedical, Telecom, Metrology
| Life Science, Imaging, Quantum optics
