Mode Field Adapters

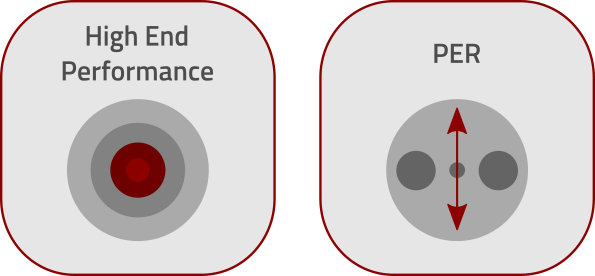

| Outstanding beam quality and PER
| PM or non-PM fiber

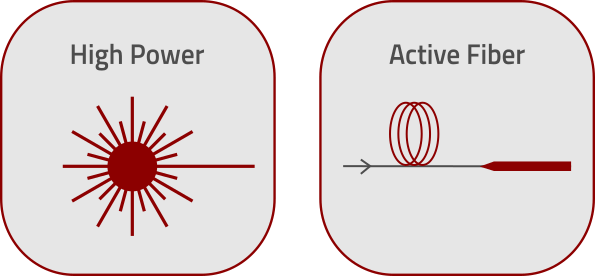

| Active or passive fiber
| High power package
| Low signal insertion loss
| Stable Output Beam

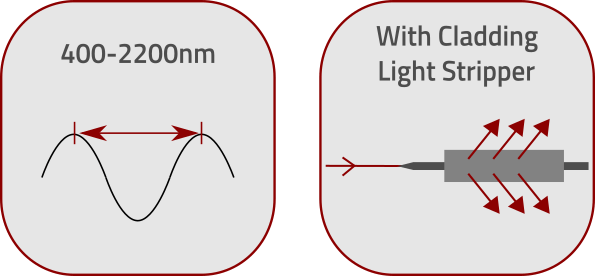

| Wavelengths from 400nm to 2200nm

| Highlights

| Technical Data

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
Insertion loss Depends on fiber combination (mode field adaption)
Pigtail length > 0.8 m
Power handling < 10W* (100W on request)**

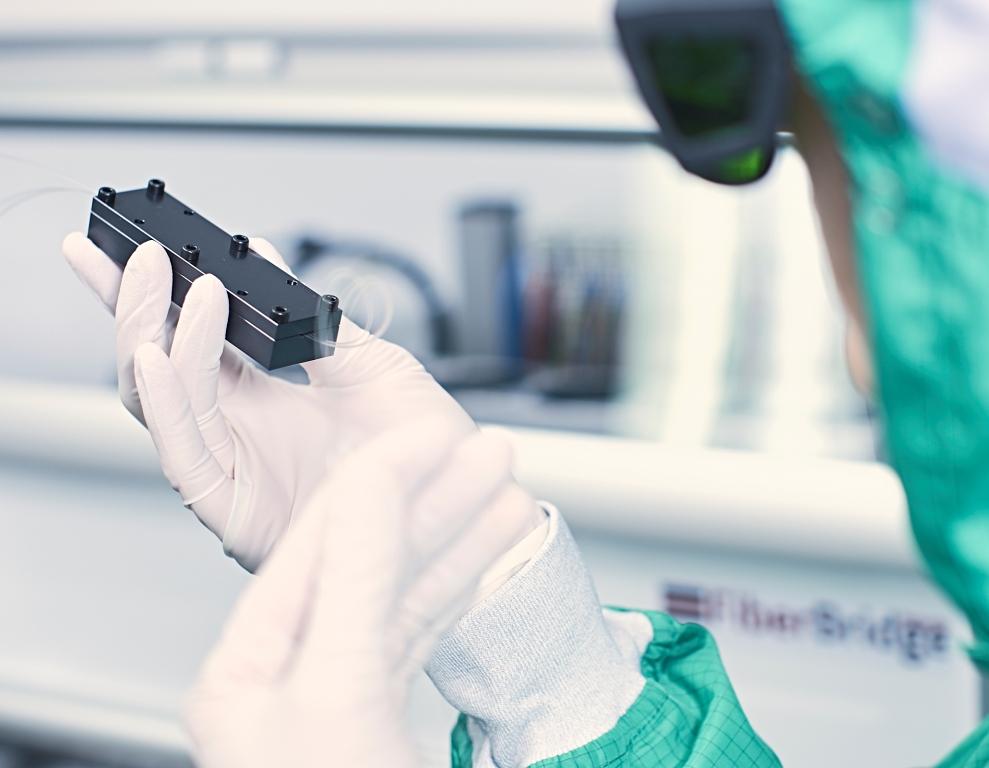

Package size 70 x 16 x 12 mm L x W x H
Other specifications on request
*Heatsinking is required for package temperature above 35°C
**Heatsinking is required, recommended package temperature between 18°C and 35°C
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

| Applications

| Fiber amplifier and laser systems
| Tapered Fiber Amplifier
| Mode field adaption for large mode area (LMA) optical fibers
| Industrial, Biomedical, Telecom, Metrology
| Life science, Imaging, Quantum optics
